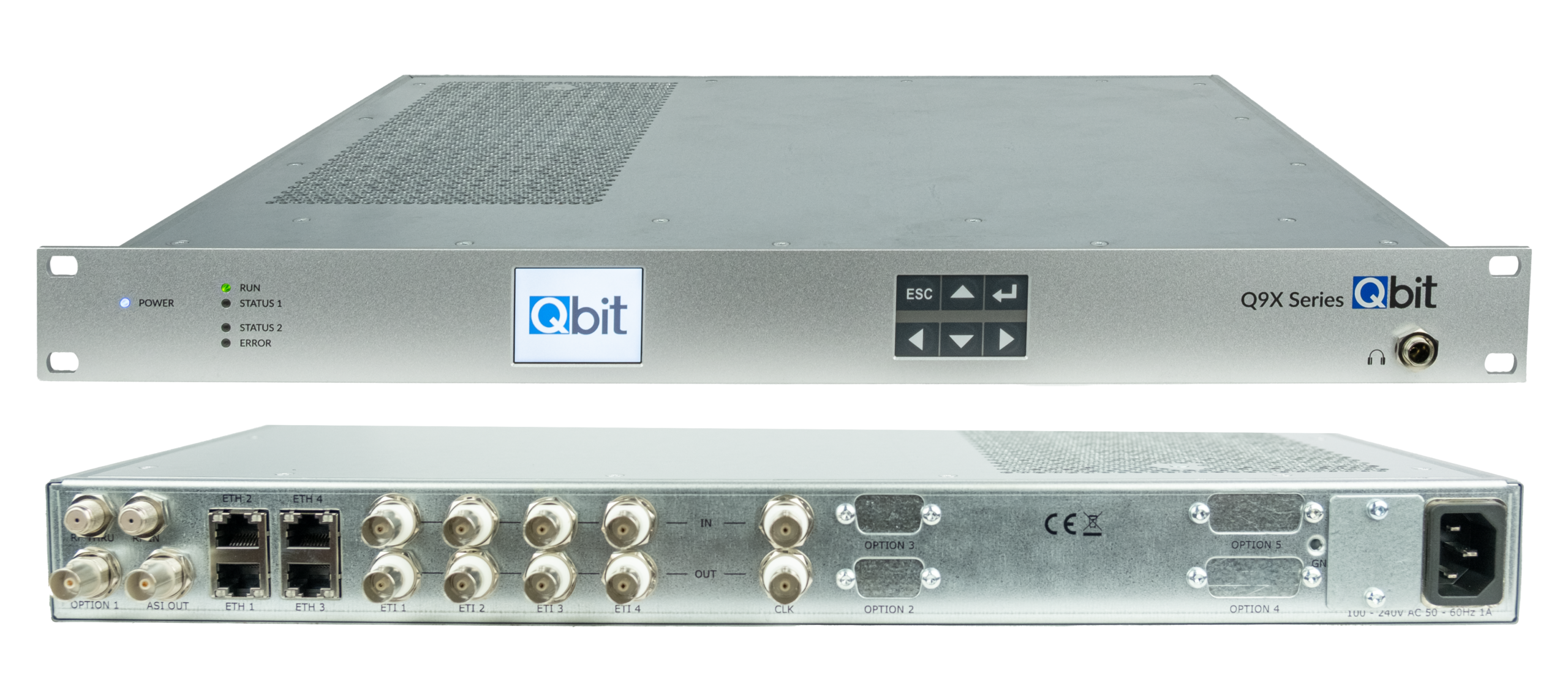

A universal processing platform for conversion between ETI and EDI as well as encapsulation of ETI and EDI for satellite distribution. Optionally equipped with satellite receiver.
A universal processing platform for conversion between ETI and EDI as well as encapsulation of ETI and EDI for satellite distribution. Optionally equipped with satellite receiver.
Physical Connectors
4x BNC ETI/G.703 Inputs (75 Ohm)
4x BNC ETI/G.703 Outputs (75 Ohm)
Supported Formats
ETI(NI, G.703)
ETI(NA, G.704) 5592
ETI(NA, G.704) 5376
Supported Transports
SRT, RIST, UDP, TCP, Encapsulated in DVB-MPE (as per ETSI EN 301 192)
Supported PFT Modes (including all permitted combinations)
Encapsulation, Transportation, Fragmentation, Reed Solomon
Input Frequency
950 MHz to 2150 MHz
Input Signal Level
-65 dBm to -25 dBm
Supported Symbol Rates
1 MSps to 45 MSps (optionally down to 100 kSps)
Supported Standards
DVB-S, DVB-S2 (according to ETSI EN 300 421, ETSI EN 302 307-1/-2)
Modulation
QPSK, 8PSK, 16APSK, 32APSK
LNB Control
Universal LNB: 0V, 13V, 18V
DiSEqC 1.x
Rolling recording of full ETI/EDI streams
Duration
Up to 7 days
Number of streams
Up to 4 in parallel
Storage
NFS, SMB, Local SSD
4x Ethernet Interfaces (IEEE 802.3, RJ-45, 10/100/1000 Mbps)
Isolation of all networks by integrated firewall
Roles can be freely assigned to any of the interfaces (Management, Data, etc.)
HTML5 Web UI
Remote Control
REST API, EmBER+, SNMPv2c
User Management
Fine-grained permission control, LDAP(S) authentication
19″ 1RU Chassis
Size (W/D/H)
483mm/360mm/44mm
Weight
6kg
