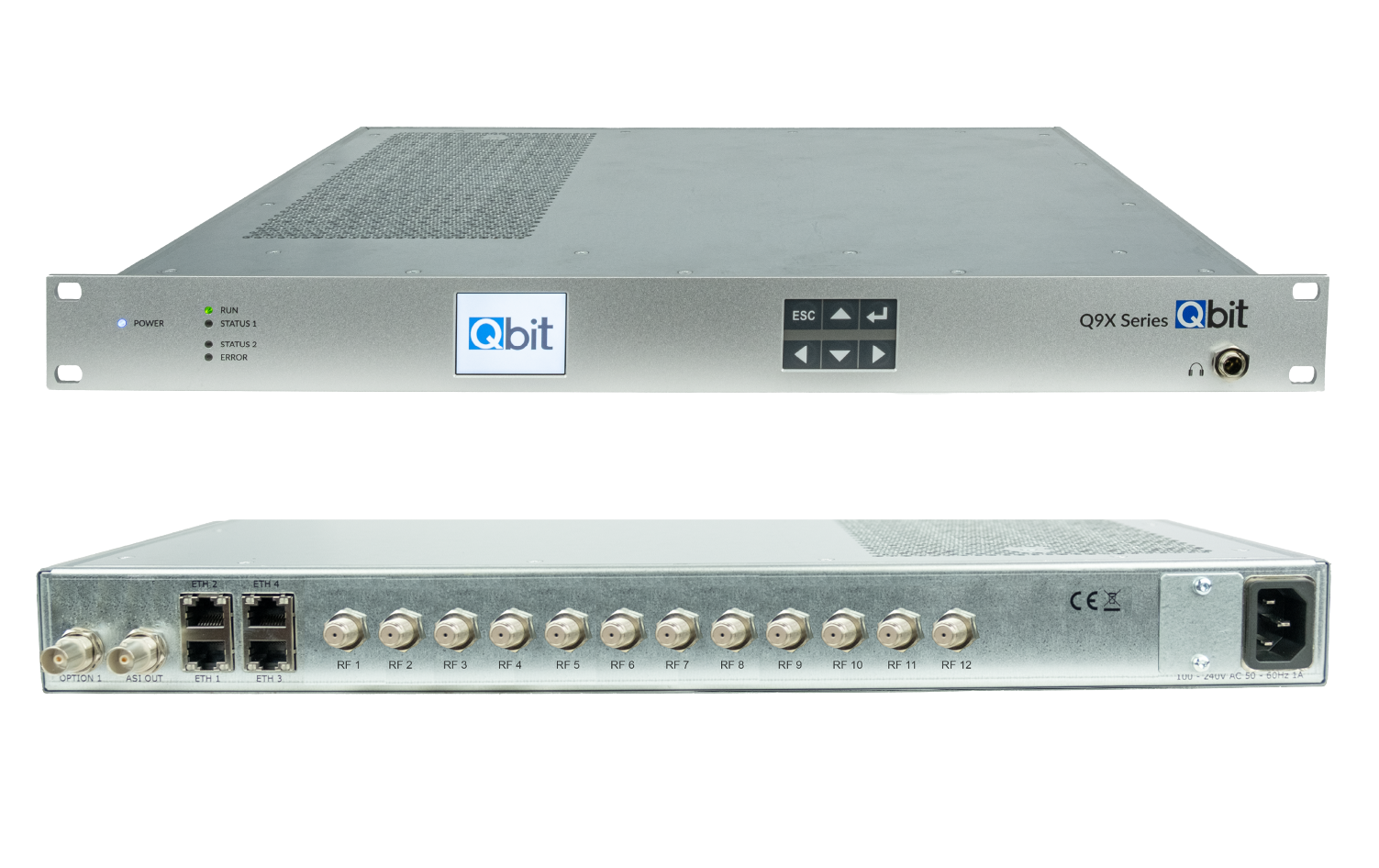

Q9X-T FM/DAB+ Transcoder

The Q9X-T is a high-density FM/DAB+ receiver and transcoder for cable networks and broadcasters. It features 12 tuners that may each be configured to do FM or DAB+ reception. The received programmes can be output via AES67 or encoded into DVB-compliant MPEG-2 transport streams for feeding cable networks.

Key Features

The next-generation transcoding platform

Receive, monitor, and transcode up to twelve FM and DAB plus programmes with versatile networking in a compact one-unit platform.

High density

Featuring up to 12 FM/DAB+ tuners in 1U, the Q9X-T achieves densities never seen before

Flexible network options

4 freely assignable network interfaces allow for utmost flexibility

Product Specifications

FM/DAB+ Receiver

12 independent FM/DAB+ tuners, with one antenna input each.

Output Protocols

RAVENNA/AES67
Icecast2, HLS, MPEG-DASH
DVB-compliant MPEG-2 Transport Stream (as per ISO 13818-1,
ETSI EN 300 468)
Elementary Stream

Supported Codecs

MPEG-1/2 Layer I, II, III
AAC (AAC-LC, HE-AACv1, HE-AACv2, AAC-LD)
xHE-AAC
AC-3, E-AC-3
Opus
Linear PCM

System Configuration, Control, Monitoring

HTML5 Web UI, REST API, SNMPv2c, NMOS IS-04/IS-05, EmBER+ (future option)

Power Supply

100-240V AC 50/60 Hz, optional redundant power supply
Power consumption: <20W

Physical Parameters

19″ 1RU Chassis
Size (W/D/H): 483mm/360mm/44mm
Weight: 6kg

The flexible transcoder for cable network providers
