RAVENNA / AES67 Interface QARION®

Connecting digital and analog audio devices to RAVENNA networks.

The QARION® RAVENNA Interface Series interfaces AES3 and analog audio with RAVENNA/AES67 networks. Easy to use, cost effective and compact, QARION® offers straightforward ingress, egress and monitoring of RAVENNA/AES67 streams in audio networks and plug-and-play integration of legacy audio equipment to RAVENNA/AES67 networks.



QARION

QARION® is available in four flavours:

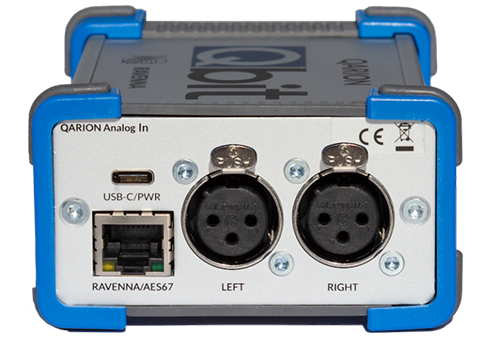

Analog In

Analog In

Function

Ingesting any analog audio source to RAVENNA
AES67

Applications

Mixers
Audio Consoles
Music Instruments
Microphones
Smart Phone

Inputs

2x Analog
(XLR-F) Left/Right

Outputs

1x RAVENNA
AES67 (RJ45)

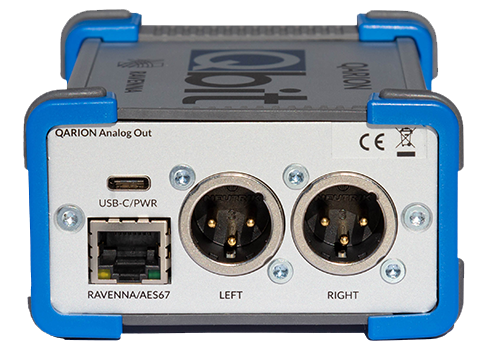

Analog Out

Analog Out

Function

Extracting RAVENNA
AES67 audio channels to analog devices

Applications

Speakers
Amplifiers
Recorders


Inputs

1x RAVENNA
AES67 (RJ45)

Outputs

2x Analog
(XLR-M) Left/Right

AES3 In/Out

AES3 In/Out

Function

Ingesting and Extracting digital audio to and from RAVENNA AES67

Applications

Codecs
Mixers
Audio Consoles
Music Instruments
Recorders

Inputs

1x Digital Stereo (AES3, XLR-F)
1x RAVENNA AES67 (RJ45)
In-/Output

Outputs

1x Digital Stereo (AES3, XLR-M)
1x RAVENNA AES67 (RJ45)
In-/Output

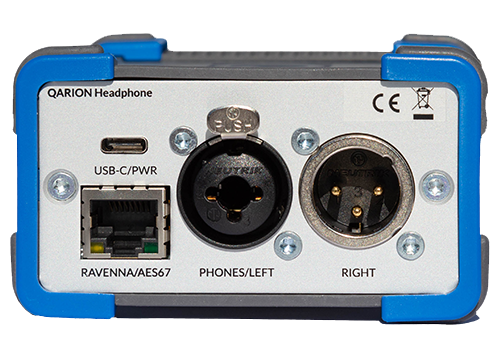

Headphone

Headphone

Function

Monitoring RAVENNA AES67
audio networks via  headphone

Applications

Headphones
Speakers
Amplifiers
Recorders

Inputs

1x RAVENNA
AES67 Input (RJ45)

Outputs

2x Analog
(XLR-F/M) Left/Right
Headphone (1/4″ / 6,35mm)

RAVENNA / AES67 Interface QARION® For RAVENNA networks

Product Specifications

    • Digital AES3 Audio
